Managing Docker apps with Kubernetes Ingress Controller

Posted on September 17, 2021 by Alvin Lee

CNCF projects highlighted in this post

Guest post originally published on Kong’s blog by Alvin Lee

Think back to when your development team made the switch to Dockerized containers. What was once an application requiring multiple services on virtual machines transitioned to an application consisting of multiple, tidy Docker containers. While the result was a streamlined system, the transition likely was daunting.

Now, it’s time for another transformational leap: moving from a single set of containers to a highly available, orchestrated deployment of replica sets using Kubernetes. This may seem like a massive transformation, but you can reduce the bumps in the road by using an open source ingress controller to simplify your task and provide plugins that you can customize based on your need.

In this tutorial, we’ll start with a Dockerized application made up of three containers: a web server, a database and a key-value store. We will walk through how to deploy this application with Kubernetes (K8s) using Kong’s Kubernetes Ingress Controller (documentation) to expose the container’s ports for external access. Lastly, we’ll get familiar with how to set up some Kong plugins with the ingress controller.

Core Concepts

Before we dive in, let’s look briefly at some core concepts for our walkthrough.

Docker

Docker is often used in platform as a service (PaaS) offerings, approaches application development by isolating individual pieces of an application into containers. Each container is a standardized unit of software that can run on its own.

For example, a Postgresql database pegged to a specific version can run entirely within its own Docker container. The container is standard and runs on any developer’s machine. There are no longer questions like, “Why does the query work on my machine but not on your machine? What’s your environment setup?” When you run your application services within Docker containers, you ensure that everybody runs the same application within the same environment.

Kubernetes (K8s)

Applications quickly progressed from single Docker containers to a composition of multiple containers working together. One might use an application like Docker Compose to deploy a multiple container application.

However, the next step of the progression is to orchestrate multiple replicas of the same application as a cluster, distributing the load across replica nodes within the cluster and providing fallback nodes in case a single application node fails. Today’s de facto standard for this orchestration and management is Kubernetes. Many cloud service providers—including AWS, Azure and Google Cloud—offer Kubernetes.

Kong Kubernetes Ingress Controller

Ingress is a critical part of K8s, managing external access to the services inside of a Kubernetes cluster. Within a cluster, the web server container may talk to the database container, but what good is it if the external world can’t talk to the web server? In K8s, communication with the external world requires an ingress controller. The open source Kong Kubernetes Ingress Controller wraps around Kong Gateway and Kong’s various plugins to play this critical role.

The basic use case

In our basic use case, we have an application composed of a web server (NGINX), a database (PostgreSQL) and a key-value store (Redis). This application typically runs as three Docker containers. We need to transition this application to K8s, but we need to set up an ingress to access our services from outside our K8s cluster.

Our mini-project approach

For our mini-project walkthrough, we’re going to take this approach:

Create a simple, low-cost K8s cluster using Google Kubernetes Engine (GKE).
Use kubectl to configure the cluster for deploying our multi-container application.
Configure and integrate Kong Kubernetes Ingress Controller, giving us external access to our application’s services.
Add in the use of a cert-manager for HTTPS support, as well as Kong plugins for external logging and request routing.

What you’ll need

To journey alongside us in this walkthrough, you’ll need a Google Cloud Platform account, which has a starting free tier with an initial usage credit.

On your local machine, you’ll need to be comfortable working at the command line with the following tools installed:

kubectl — for running configuration commands on K8s clusters
Google Cloud SDK — for connecting to your GKE cluster, making it your kubectl context.

Are you ready to dive into containers and clusters? Here we go!

Step 1: Create a GKE Cluster

Assuming you have set up your Google Cloud Platform account, navigate to the Console and create a new project through the project list drop-down in the upper left:

Screenshot of Google Cloud Platform dashboard clicking on "select a project"

Choose a name for your project (for example: k8s-with-kong) and create it. Working within that project, navigate through the left menu sidebar to find “Kubernetes Engine → Clusters.”

On the resulting page, click on the “Enable” button to use GKE with your project. This process might take one to two minutes for Google to start everything up for your project. After that, you’ll find yourself on the clusters page for GKE. Click on “Create.”

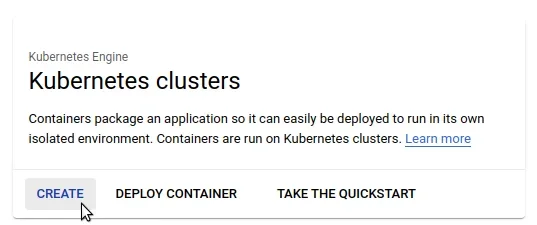

Screenshot showing pop up window Kubernetes clusters, click create

Choose to configure a “Standard” cluster. Set a name for your cluster, along with a region.

Screenshot showing cluster basics, type name "my-application", location type select "regional", region select "us-central1"

Next, in the left menu bar, find “NODE POOLS” and click on “default-pool:”

Screenshot showing node pools, select default-pool

For the node pool, set the size to 1. We’ll keep the resource usage for our cluster small since this is just a demo mini-project.

Screenshot showing node pool details, type name: default-pool, size choose "1"

Click “Create” at the bottom of the page.

Your K8s cluster will take a few minutes to spin up.

Use gcloud to configure cluster access for kubectl

With our GKE cluster up and running, we want to set up access to our cluster through kubectl on our local machine. To do this, we follow the simple steps on this GKE documentation page.

~$ gcloud init
# Follow the prompts to login to your Google Cloud account.

# Choose your cloud project (in our example: k8s-with-kong)

Do you want to configure a default Compute Region and Zone? (Y/n)? n

Next, we’ll generate a kubeconfig entry to run our kubectl commands against our GKE cluster. For this step, you will need the cluster name and region you specified when creating your cluster:

~$ gcloud container clusters get-credentials my-application --region=us-central1
Fetching cluster endpoint and auth data.
kubeconfig entry generated for my-application.

With that, we can start running commands through kubectl to configure our deployment.

Step 2: Deploy Application Through kubectl

To deploy our application, we will need to create a deployment.yml file and a service.yml file. The deployment.yml file should look like this:

apiVersion: apps/v1
kind: Deployment
metadata:
  name: my-app
  labels:
    app: my-app
spec:
  replicas: 1
  selector:
    matchLabels:
      app: my-app
  template:
    metadata:
      labels:
        app: my-app
    spec:
      containers:
        - name: server
          image: nginx:1.19-alpine
          imagePullPolicy: Always
          ports:
            - containerPort: 80
        - name: postgres
          image: postgres:13.2-alpine
          imagePullPolicy: Always
          env:
            - name: POSTGRES_PASSWORD
              value: postgrespassword
          ports:
            - containerPort: 5432
        - name: redis
          image: redis:6.2-alpine
          imagePullPolicy: Always
          ports:
            - containerPort: 6379
          command: ["redis-server"]
          args: ["--requirepass", "redispassword"]

Our deployment will run a single replica of our application, which consists of three containers. We have an nginx web server, which we will call server. The server’s container port of interest is port 80.

Next, we have a Postgresql database running in a container called postgres. The default user for this database container image is postgres. We’ll also set the password for that user to postgres. The database container’s port is 5432.

Lastly, we have our Redis key-value store, which will expose port 6379 on the container. On startup of the Redis server, we’ll set the password to redis.

With our deployment configuration in place, let’s apply this to our cluster:

~/project$ kubectl apply -f deployment.yml
deployment.apps/my-app created

After a few minutes, you can verify that your deployment is up:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
~/project$ kubectl get deployment my-app
NAME     READY   UP-TO-DATE   AVAILABLE   AGE
my-app   1/1     1            1           3m15s

~/project$ kubectl get pods
NAME                      READY   STATUS    RESTARTS   AGE
my-app-55db7c65f5-qjxs8   3/3     Running   0          4m16

~/project$ kubectl logs my-app-55db7c65f5-qjxs8 server
...
Enabled listen on IPv6 in /etc/nginx/conf.d/default.conf
/docker-entrypoint.sh: Configuration complete; ready for start up

~/project$ kubectl logs my-app-55db7c65f5-qjxs8 postgres
... database system is ready to accept connections

~/project$ kubectl logs my-app-55db7c65f5-qjxs8 redis
... Ready to accept connections

Next, we need to configure service.yml so that the ports on our cluster’s containers are accessible from outside the cluster.

apiVersion: v1
kind: Service
metadata:
  name: my-app
  labels:
    app: my-app
spec:
  selector:
    app: my-app
  ports:
  - name: server
    port: 80
    targetPort: 80
  - name: postgres
    protocol: TCP
    port: 5432
    targetPort: 5432
  - name: redis
    protocol: TCP
    port: 6379
    targetPort: 6379

Here, we are configuring a K8s Service, mapping incoming ports on our pod to target ports on the individual containers in a pod. For simplicity, we’ll use the same values for port and targetPort. If we can get a request to port 80 on our K8s pod, that request will be sent to port 80 of the server container (our nginx container). Similarly, requests to port 5432 will be mapped to port 5432 on our postgres container, while requests to port 6379 will map to port 6379 on our redis container.

Let’s update our cluster with this new service configuration:

~/project$ kubectl apply -f service.yml
service/my-app created

After a moment, we can check that our configuration is in place:

~/project$ kubectl describe service my-app
Name:              my-app
Namespace:         default
Labels:            app=my-app
Annotations:       cloud.google.com/neg: {"ingress":true}
Selector:          app=my-app
Type:              ClusterIP
IP Families:       <none>
IP:                10.72.128.227
IPs:               <none>
Port:              server  80/TCP
TargetPort:        80/TCP
Endpoints:         10.72.0.130:80
Port:              postgres  5432/TCP
TargetPort:        5432/TCP
Endpoints:         10.72.0.130:5432
Port:              redis  6379/TCP
TargetPort:        6379/TCP
Endpoints:         10.72.0.130:6379
Session Affinity:  None
Events:            <none>

This is all good and fine, but you might notice from looking at the endpoint IP addresses that—while our ports are all exposed and mapped—we’re still working within a private network. We need to expose our entire K8s cluster to the outside world. For this, we need an ingress controller. Enter Kong.

Step 3: Configure Kong’s Kubernetes Ingress Controller

Configuring Kong’s Ingress Controller is fairly straightforward. Let’s go through the steps one at a time.

Deploy Kong Kubernetes Ingress Controller to GKE

Taking our cues from Kong’s documentation page on Kong Ingress Controller and GKE, we first need to create a ClusterRoleBinding to have proper admin access for some of the GKE cluster configurations we’re going to do momentarily. Create a file called gke-role-binding.yml with the following content:

apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: cluster-admin-user
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: cluster-admin
subjects:
  - kind: User
    name: [YOUR GOOGLE CLOUD ACCOUNT EMAIL ADDRESS]
    namespace: kube-system

Let’s apply this role binding:

~/project$ kubectl apply -f gke-role-binding.yml
clusterrolebinding.rbac.authorization.k8s.io/cluster-admin-user created

Next, we deploy the Ingress Controller, using the deployment and service configuration file that Kong has custom written and made available at https://bit.ly/k4k8s.

~/project$ kubectl apply -f https://bit.ly/k4k8s
namespace/kong created

...

service/kong-proxy created
service/kong-validation-webhook created
deployment.apps/ingress-kong created

Check that the Ingress Controller deployed. It might take a minute for the kong-proxy EXTERNAL_IP to be provisioned:

~/project$ kubectl get services -n kong
NAME                  TYPE          CLUSTER-IP     EXTERNAL-IP    PORT(S)                     AGE
kong-proxy            LoadBalancer  10.72.130.214  34.71.43.9     80:32594/TCP,443:30982/TCP  71s
kong-validation-webhook  ClusterIP  10.72.130.92   <none>         443/TCP                     70s

Then, we set up an environment variable, PROXY_IP, to hold the IP address associated with the Kong proxy.

~/project$ export PROXY_IP=$(kubectl get -o \
jsonpath="{.status.loadBalancer.ingress[0].ip}" \
service -n kong kong-proxy)

~/project$ echo $PROXY_IP
34.71.43.9   # Your IP address will differ

~/project$ curl -i $PROXY_IP
HTTP/1.1 404 Not Found
Date: Tue, 18 May 2021 04:51:48 GMT
Content-Type: application/json; charset=utf-8
Connection: keep-alive
Content-Length: 48
X-Kong-Response-Latency: 1
Server: kong/2.3.3

{"message":"no Route matched with those values"}

Excellent. Our Kong Kubernetes Ingress Controller has deployed, and it is reachable at the PROXY_IP. It just needs to be configured for proper request routing.

Add an ingress to map HTTP requests to the web server

Next, let’s configure the Kong Kubernetes Ingress Controller to listen for HTTP requests to the root / path, then map those requests to port 80 of our K8s Service (which maps that request to port 80 of the NGINX server container). We’ll create a file called http-ingress.yml:

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: my-app
  annotations:
    konghq.com/strip-path: "true"
    kubernetes.io/ingress.class: kong
spec:
  rules:
  - http:
      paths:
      - path: /
        pathType: Prefix
        backend:
          service:
            name: my-app
            port:
              number: 80

We apply the Ingress configuration:

~/project$ kubectl apply -f http-ingress.yml
ingress.networking.k8s.io/my-app create

Now, when we perform a curl request. Here is the result:

~/project$ curl $PROXY_IP
<!DOCTYPE html>
<html>
<head>
<title>Welcome to nginx!</title>
...
</html>

It works! We’ve successfully configured our Kong Kubernetes Ingress Controller to take HTTP requests and map them through our K8s Service and onto our NGINX container.

What if we want to talk to a container and port through a TCP connection rather than an HTTP request? For this, we’ll use Kong’s custom TCPIngress.

Add TCPIngress to map connection requests

By default, the Kong Proxy service set up through the Kong Kubernetes Ingress Controller listens on ports 80 and 443. This is why we were able to configure our Ingress to map HTTP requests to our NGINX server since HTTP requests go to port 80 by default.

For our use case, we need Kong to listen for TCP traffic on several additional ports that we’ll use for Postgres and Redis connections. Earlier, we deployed the Kong Kubernetes Ingress Controller by applying the custom configuration that Kong provided at https://bit.ly/k4k8s. Now, we want to apply two patches to that configuration to accommodate our specific TCP streaming needs.

First, create a file called patch-kong-deployment.yml, containing the following:

spec:
  template:
    spec:
      containers:
        - name: proxy
          env:
            - name: KONG_STREAM_LISTEN
              value: "0.0.0.0:11111, 0.0.0.0:22222"
          ports:
            - containerPort: 11111
              name: postgres-listen
              protocol: TCP
            - containerPort: 22222
              name: redis-listen
              protocol: TCP

Here, we’re configuring Kong’s TCP stream to listen on ports 11111 (which we’ll use for postgres connections) and 22222 (which we’ll use for Redis connections). Next, create a file called patch-kong-service.yml, containing the following:

spec:
  ports:
    - name: postgres-listen
      port: 11111
      protocol: TCP
      targetPort: 11111
    - name: redis-listen
      port: 22222
      protocol: TCP
      targetPort: 22222

This patch modifies the K8s Service related to Kong Kubernetes Ingress Controller, exposing the ports that we need. Now, we apply these two patches:

~/project$ kubectl patch deploy -n kong ingress-kong \
--patch-file=patch-kong-deployment.yml
deployment.apps/ingress-kong patched

~/project$ kubectl patch service -n kong kong-proxy \
--patch-file=patch-kong-service.yml
service/kong-proxy patched

Now that we’ve patched Kong to listen for TCP connections on the proper ports, let’s configure our TCPIngress resource. Create a file called tcp-ingress.yml:

apiVersion: configuration.konghq.com/v1beta1
kind: TCPIngress
metadata:
  name: my-app
  annotations:
    kubernetes.io/ingress.class: kong
spec:
  rules:
  - port: 11111
    backend:
      serviceName: my-app
      servicePort: 5432
  - port: 22222
    backend:
      serviceName: my-app
      servicePort: 6379

This configuration listens for TCP traffic on port 11111. It forwards that traffic to our K8s Service at port 5432. As you may recall, that Service maps port 5432 traffic to the postgres container at port 5432. Similarly, our TCPIngress forwards traffic on port 22222 to our Service’s port 6379, which subsequently reaches the redis container at port 6379.

Let’s apply this configuration:

~/project$ kubectl apply -f tcp-ingress.yml
tcpingress.configuration.konghq.com/my-app created

That should be everything. Now, let’s test.

~/project$ psql -h $PROXY_IP -p 11111 -U postgres
Password for user postgres: postgrespassword
psql (13.2 (Ubuntu 13.2-1.pgdg16.04+1))
Type "help" for help.

postgres=#

We were able to connect to the postgres container! Now, let’s try Redis:

~/project$ redis-cli -h $PROXY_IP -p 22222 -a redispassword
34.71.43.9:22222>

We’re in! We’ve successfully configured Kong Kubernetes Ingress Controller to map our HTTP requests to the web server and our TCP connections to the database and key-value store. At this point, you should have quite a foundation for tailoring the Kong Kubernetes Ingress Controller for your own business needs.

Before we wrap up our walkthrough, let’s experiment a bit by integrating some plugins with our Ingress Controller.

Step 4: Integrating Plugins With the Ingress Controller

Certificate Management and HTTPS

We’ll start by configuring our Ingress Controller to use cert-manager, which manages the deployment of SSL certificates. This will enable our NGINX web server to be accessible via HTTPS.

Install cert-manager to GKE cluster

To install cert-manager, we follow the steps outlined on the Kubernetes documentation page. The documentation steps mention creating a ClusterRoleBinding for cluster admin access if you are using GKE. However, we already did this earlier in our walkthrough.

Next, we install the CustomResourceDefinition to our cluster with cert-manager, and then we verify the installation:

~/project$ kubectl apply -f \
https://github.com/jetstack/cert-manager/releases/download/v1.3.1/cert-manager.yaml

~/project$ kubectl get pods --namespace cert-manager
NAME                                      READY  STATUS   RESTARTS  AGE
cert-manager-7c5c945df9-5rvj5             1/1    Running  0          1m
cert-manager-cainjector-7c67689588-n7db6  1/1    Running  0          1m
cert-manager-webhook-5759dc48f-cfwd6      1/1    Running  0          1m

Set up the domain name to point to kong-proxy IP

You’ll recall that we stored our kong-proxy IP address as PROXY_IP. Assuming you have control over a domain name, add a DNS record that resolves your domain name to PROXY_IP. For this example, I’m adding an A record to my domain ( codingplus.coffee) that resolves the subdomain kong-k8s.codingplus.coffee to my kong-proxy IP address.

With our subdomain resolving properly, we need to modify our http-ingress.yml file to specify a host for HTTP requests rather than just use an IP address. You will, of course, use the domain name that you have configured:

apiVersion: networking.k8s.io/v1beta1
kind: Ingress
metadata:
  name: my-app
  annotations:
    konghq.com/strip-path: "true"
    kubernetes.io/ingress.class: kong
spec:
  rules:
  - http:
      paths:
      - path: /
        backend:
          serviceName: my-app
          servicePort: 80
    host: kong-k8s.codingplus.coffee

Let’s apply the updated http-ingress.yml file:

~/project$ kubectl apply -f http-ingress.yml
ingress.networking.k8s.io/my-app configured

Now, our curl request using our domain name reaches the NGINX server:

~/project$ curl http://kong-k8s.codingplus.coffee
<!DOCTYPE html>
<html>
<head>
<title>Welcome to nginx!</title>
...
</html>

Request SSL Certificate

Next, we create a ClusterIssuer resource for our cert-manager. Create a file called cluster-issuer.yml, with the following content (replace with your own email address):

apiVersion: cert-manager.io/v1alpha2
kind: ClusterIssuer
metadata:
  name: letsencrypt-prod
  namespace: cert-manager
spec:
  acme:
    email: [YOUR EMAIL ADDRESS]
    privateKeySecretRef:
      name: letsencrypt-prod
    server: https://acme-v02.api.letsencrypt.org/directory
    solvers:
    - http01:
        ingress:
          class: kong

Create this resource:

~/project$ kubectl apply -f cluster-issuer.yml
clusterissuer.cert-manager.io/letsencrypt-prod created

Lastly, we want to update http-ingress.yml once again to provision a certificate and use it:

apiVersion: networking.k8s.io/v1beta1
kind: Ingress
metadata:
  name: my-app
  annotations:
    konghq.com/strip-path: "true"
    kubernetes.io/ingress.class: kong
    kubernetes.io/tls-acme: "true"
    cert-manager.io/cluster-issuer: letsencrypt-prod
spec:
  rules:
  - http:
      paths:
      - path: /
        backend:
          serviceName: my-app
          servicePort: 80
    host: kong-k8s.codingplus.coffee
  tls:
  - secretName: my-ssl-cert-secret
    hosts:
    - kong-k8s.codingplus.coffee

Let’s apply the updated http-ingress.yml manifest:

~/project$ kubectl get certificates
NAME                 READY   SECRET               AGE
my-ssl-cert-secret   True    my-ssl-cert-secret   24s

Our certificate has been provisioned. Now, we can send requests using HTTPS:

~/project$ curl https://kong-k8s.codingplus.coffee
<!DOCTYPE html>
<html>
<head>
<title>Welcome to nginx!</title>
...

Step 5: Adding Plugins

Integrate Kong’s HTTP Log plugin

Next, let’s configure our Ingress Controller to use a Kong plugin. We’ll go with the HTTP Log plugin, which logs requests and responses to a separate HTTP server.

Create a Mockbin to receive log data

We’ll use Mockbin, which gives us an endpoint to tell our plugin to send its data. At Mockbin, go through the simple steps for creating a new bin. You’ll end up with a unique URL for your bin.

Create HTTP Log Plugin resource

Create a file called http-log-plugin.yml with the following content. Make sure to use your own Mockbin endpoint URL:

apiVersion: configuration.konghq.com/v1
kind: KongPlugin
metadata:
  name: http-log-plugin
plugin: http-log
config:
  http_endpoint: https://mockbin.org/bin/ENTER-YOUR-OWN-BIN-ID-HERE
  method: POST

Create the plugin using this manifest file:

~/project$ kubectl apply -f http-log-plugin.yml
kongplugin.configuration.konghq.com/add-http-log-plugin created

Update Ingress manifest

Next, we’ll update http-ingress.yml again, making sure that our Ingress Controller knows to use our new plugin as it handles HTTP requests to the Nginx server:

apiVersion: networking.k8s.io/v1beta1
kind: Ingress
metadata:
  name: my-app
  annotations:
    konghq.com/strip-path: "true"
    kubernetes.io/ingress.class: kong
    kubernetes.io/tls-acme: "true"
    cert-manager.io/cluster-issuer: letsencrypt-prod
    konghq.com/plugins: "http-log-plugin<strong>"</strong>
...

Apply the updated file:

~/project$ kubectl apply -f http-ingress.yml
ingress.networking.k8s.io/my-app configured

Send request, check Mockbin

Now that we added our plugin, we can send another request to our web server:

~/project$ curl https://kong-k8s.codingplus.coffee

We can check the request history for our bin at Mockbin. We see our most recent request posted to Mockbin, along with data about our request in the Mockbin request body:

It looks like our HTTP Log plugin is up and running!

apiVersion: configuration.konghq.com/v1
kind: KongPlugin
metadata:
  name: correlation-id-plugin
plugin: correlation-id
config:
  header_name: my-unique-id
  generator: uuid
  echo_downstream: false

Integrate Kong’s Correlation ID Plugin

Lastly, we’ll integrate one more Kong plugin: Correlation ID. This plugin appends a unique value (typically a UUID) to the headers for every request. First, we create the Correlation ID Plugin resource. Create a file called correlation-id-plugin.yml:

In our plugin configuration, we’re adding a header called my-unique-id to all of our requests. It will contain a UUID. Install the plugin:

~/project$ kubectl apply -f correlation-id-plugin.yml
kongplugin.configuration.konghq.com/add-correlation-id-plugin configured

Next, we add the plugin, alongside our HTTP Log plugin to our http-ingress.yml manifest:

apiVersion: networking.k8s.io/v1beta1
kind: Ingress
metadata:
  name: my-app
  annotations:
    konghq.com/strip-path: "true"
    kubernetes.io/ingress.class: kong
    kubernetes.io/tls-acme: "true"
    cert-manager.io/cluster-issuer: letsencrypt-prod
    konghq.com/plugins: "http-log-plugin,correlation-id-plugin"
...

Apply the changes to the Ingress Controller:

~/project$ kubectl apply -f http-ingress.yml
ingress.networking.k8s.io/my-app configured

With our plugins configured, we send another curl request:

~/project$ curl https://kong-k8s.codingplus.coffee

And again, we check our Mockbin history for the latest request. This time, when we look closely at the headers, we see my-unique-id, which comes from our Correlation ID plugin.

Screenshot of Mockbin history showing "my-unique-id"

Success! Our Correlation ID plugin is working!

Conclusion

We’ve covered a lot of ground in this walkthrough. We started with a simple application consisting of three Docker containers. Step by step, we deployed our containers with Kubernetes, and we deployed the open source Kong Kubernetes Ingress Controller to manage external access to our cluster’s containers. Lastly, we further tailored our Ingress Controller by integrating cert-manager for HTTPS support and a few Kong plugins.

With that, you now have a comprehensive foundation for deploying your Dockerized application to Kubernetes with the help of Kong’s Kubernetes Ingress Controller. You’re well equipped to customize your deployment according to your own business application needs. 👍

If you have any additional questions, post them on Kong Nation. To stay in touch, join the Kong Community.

You may find these other Kubernetes tutorials helpful:

London, United Kingdom
